Multi-agent Twin Delayed Deep Deterministic Policy Gradient (MATD3)¶

Paper Link: https://arxiv.org/abs/1910.01465

Multi-agent Twin Delayed Deep Deterministic Policy Gradient (MATD3), extends TD3 to the multi-agent domain in a similar manner to the extension of DDPG to MADDPG. Its core goal is to reduce the overestimation bias of centralized value function in multi-agent reinforcement learning.

This table lists some general features about MATD3 algorithm:

Features of MATD3	Values	Description
Fully Decentralized	❌	There is no communication between agents.
Fully Centralized	❌	Agents send all information to the central controller, and the controller will make decisions for all agents.
Centralized Training With Decentralized Execution(CTDE)	✅	The central controller is used in training and abandoned in execution.
On-policy	❌	The evaluate policy is the same as the target policy.
Off-policy	✅	The evaluate policy is different from the target policy.
Model-free	✅	No need to prepare an environment dynamics model.
Model-based	❌	Need an environment model to train the policy.
Discrete Action	❌	Deal with discrete action space.
Continuous Action	✅	Deal with continuous action space.

Key Ideas of MATD3¶

Target Policy Smoothing¶

Adding clipped Gaussian noise \(\epsilon=\mathrm{clip}(\mathcal{N}(0,\sigma),-c,c)\) to the actions of all agents in the critic update: \(a_{j}^{\prime}=\mu_{\theta_{j}^{\prime}}(o_{j}^{\prime})+\epsilon\).Finally,the target function of the critic is expressed as:

\[ y_i=r_i+\gamma\min_{j=1,2}Q_{i,\theta_j^{\prime}}^\pi(\mathbf{x}^{\prime},\mu_1^{\prime}(o_1^{\prime})+\epsilon,...,\mu_N^{\prime}(o_N^{\prime})+\epsilon) \]

Where \(\mu_j^{\prime}\) being short for \(\mu_{\theta_{j}^{\prime}}\).

Critic update¶

The critic loss function can be expressed as :

\[ L(\theta_i)=\mathbb{E}_{x,a,r,x^{\prime}}\left[\left(Q_{i,\theta_j}^{\pi} \left(x,a_1,\ldots,a_N\right)-y_i\right)^2\right] \]

Where \(i\) expresses each agent.

Actor update¶

The deterministic policy of agent \(i\) can be optimized by gradient descent:

\[ \nabla_{\theta_i}J\left(\mu_i\right)=\mathbb{E}_{x,a\sim D}\left[\nabla_{\theta_i}\mu_i\left(a_{i}\left|o_{i}\right)\nabla_{a_i}Q_{i,\theta_j}^\mu\left(x,a_1,\ldots,a_N\left|\right._{a_i=\mu_i(o_i)}\right)\right]\right. \]

Where \(\mu_i\) being short for \(\mu_{\theta_{i}}\).

Algorithm¶

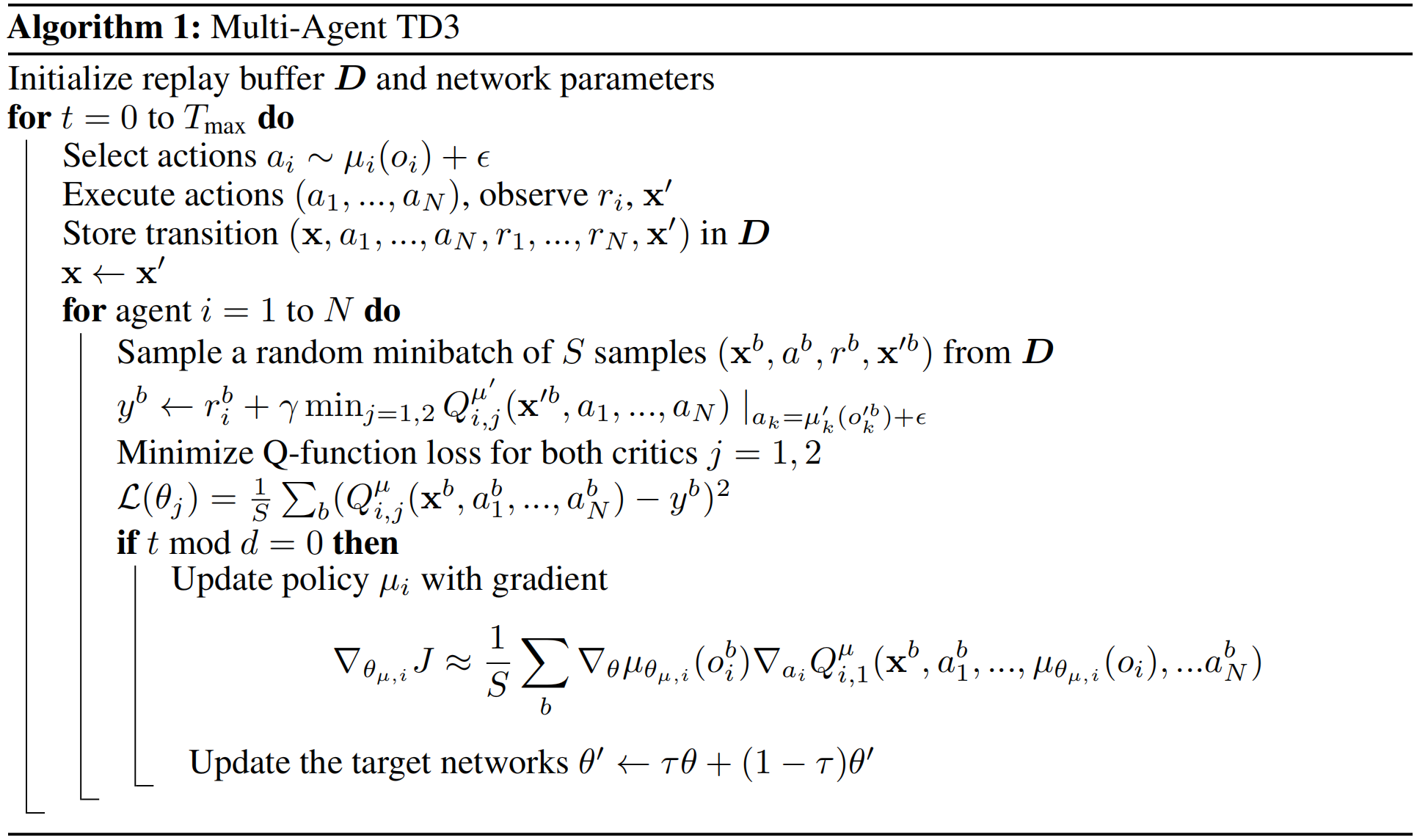

The full algorithm for training MATD3 is presented in Algorithm 1:

Run MATD3 in XuanCe¶

Before running MATD3 in XuanCe, you need to prepare a conda environment and install xuance following the installation steps.

Run Build-in Demos¶

After completing the installation, you can open a Python console and run MATD3 directly using the following commands:

import xuance
runner = xuance.get_runner(algo='matd3',
                           env='mpe',
                           env_id='simple_spread_v3',
                           )
runner.run()  # Or runner.benchmark()

Run With Self-defined Configs¶

If you want to run MATD3 with different configurations, you can build a new .yaml file, e.g., my_config.yaml. Then, run the MATD3 by the following code block:

import xuance
runner = xuance.get_runner(algo='matd3',
                       env='mpe',
                       env_id='simple_spread_v3',
                       config_path="my_config.yaml",
                       )
runner.run()  # Or runner.benchmark()

To learn more about the configurations, please visit the tutorial of configs.

Run With Custom Environment¶

If you would like to run XuanCe’s MATD3 in your own environment that was not included in XuanCe, you need to define the new environment following the steps in New Environment Tutorial. Then, prepapre the configuration file matd3_myenv.yaml.

After that, you can run MATD3 in your own environment with the following code:

import argparse
from xuance.common import load_yaml
from xuance.environment import REGISTRY_ENV
from xuance.environment import make_envs
from xuance.torch.agents import MATD3_Agents

configs_dict = load_yaml(file_dir="matd3_myenv.yaml")
configs = argparse.Namespace(**configs_dict)
REGISTRY_ENV[configs.env_name] = MyNewEnv

envs = make_envs(configs)  # Make parallel environments.
Agent = MATD3_Agents(config=configs, envs=envs)  # Create a MATD3 agent from XuanCe.
Agent.train(configs.running_steps // configs.parallels)  # Train the model for numerous steps.
Agent.save_model("final_train_model.pth")  # Save the model to model_dir.
Agent.finish()  # Finish the training.

Citation¶

@misc{ackermann2019reducingoverestimationbiasmultiagent,
      title={Reducing Overestimation Bias in Multi-Agent Domains Using Double Centralized Critics},
      author={Johannes Ackermann and Volker Gabler and Takayuki Osa and Masashi Sugiyama},
      year={2019},
      eprint={1910.01465},
      archivePrefix={arXiv},
      primaryClass={cs.LG},
      url={https://arxiv.org/abs/1910.01465},
}
